Pump Station
The application used to select pumping stations was developed in cooperation with Ecol-Unicon. After entering the investment data, the user is able to choose the optimal solution in just 4 steps without having to wait for feedback.
The selection is done automatically after entering the appropriate parameters. After entering all the data correctly, the user receives a proposal for three pumping stations. They have the parameters closest to those introduced in the previous steps. The program has implemented security measures that prevent the creation of a project. If the user enters grossly incorrect information, a hint will appear on what elements should be paid attention to during corrections. The tool also presents information on the type of pump, power, size and throughput of the installation.
The application allows you to generate the calculation result in pdf form. and downloading the document to an external drive. It is a complete document containing all the necessary information necessary to undertake the investment. Thanks to this, the document can be attached to the inquiry addressed to contractors who are competent to build the facility.
The application is available in Poland and Sweden.

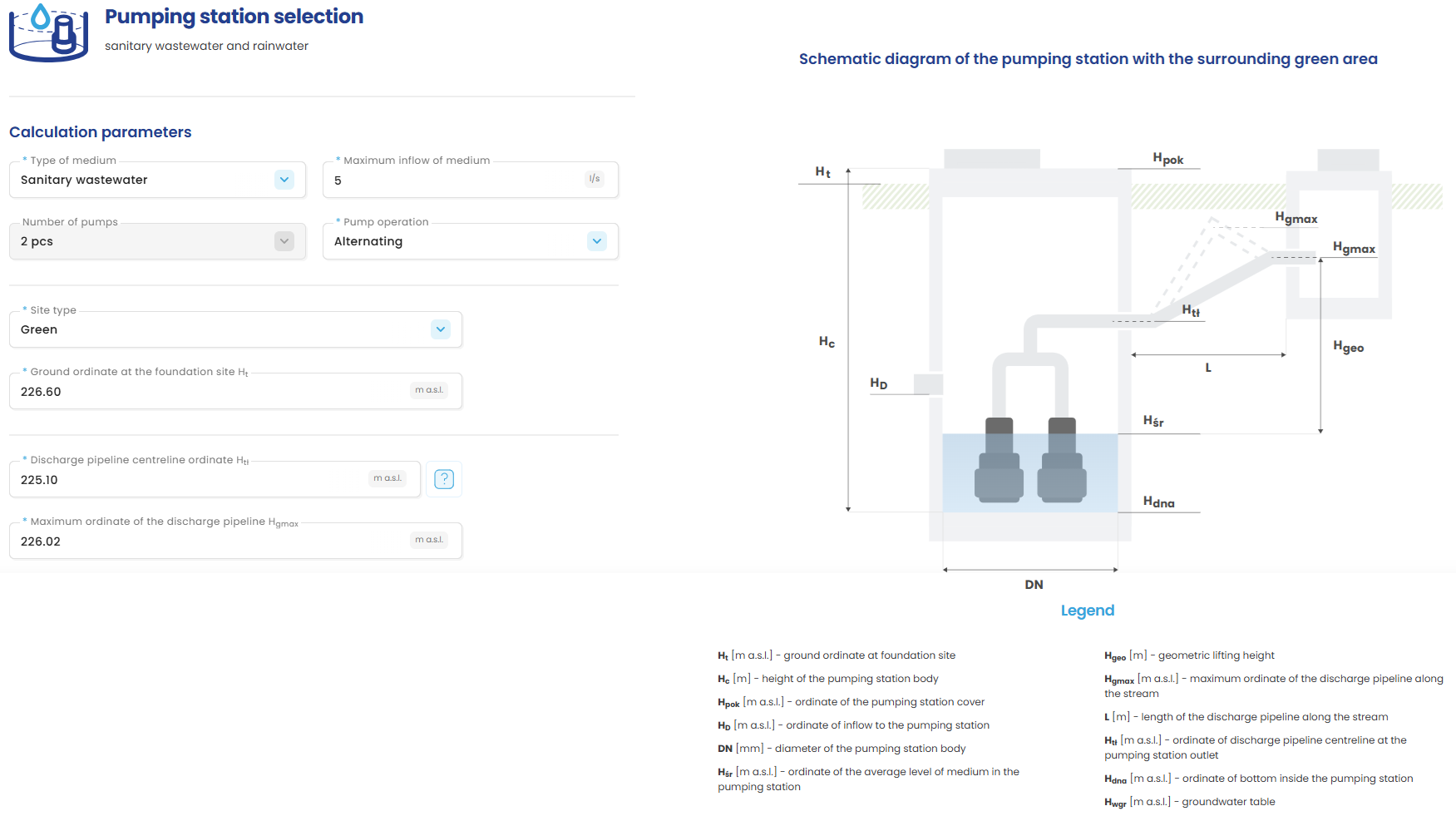

Selection of pumping station parameters
When designing a pumping station, the user must specify:
- the purpose of the installation,
- the maximum inflow,
- the type of terrain,
- the dimensions of the pipelines,
- the materials from which the individual elements of the system will be made.
Designing water infrastructure, especially pumping stations, may seem like a complicated and time-consuming task. Fortunately, the development of technology offers tools that significantly simplify this process, allowing the adjustment of systems to the individual needs of investors.
Then, the application automatically calculates linear and local losses, suggesting the most effective solutions and allowing the user to make the optimal selection of components.

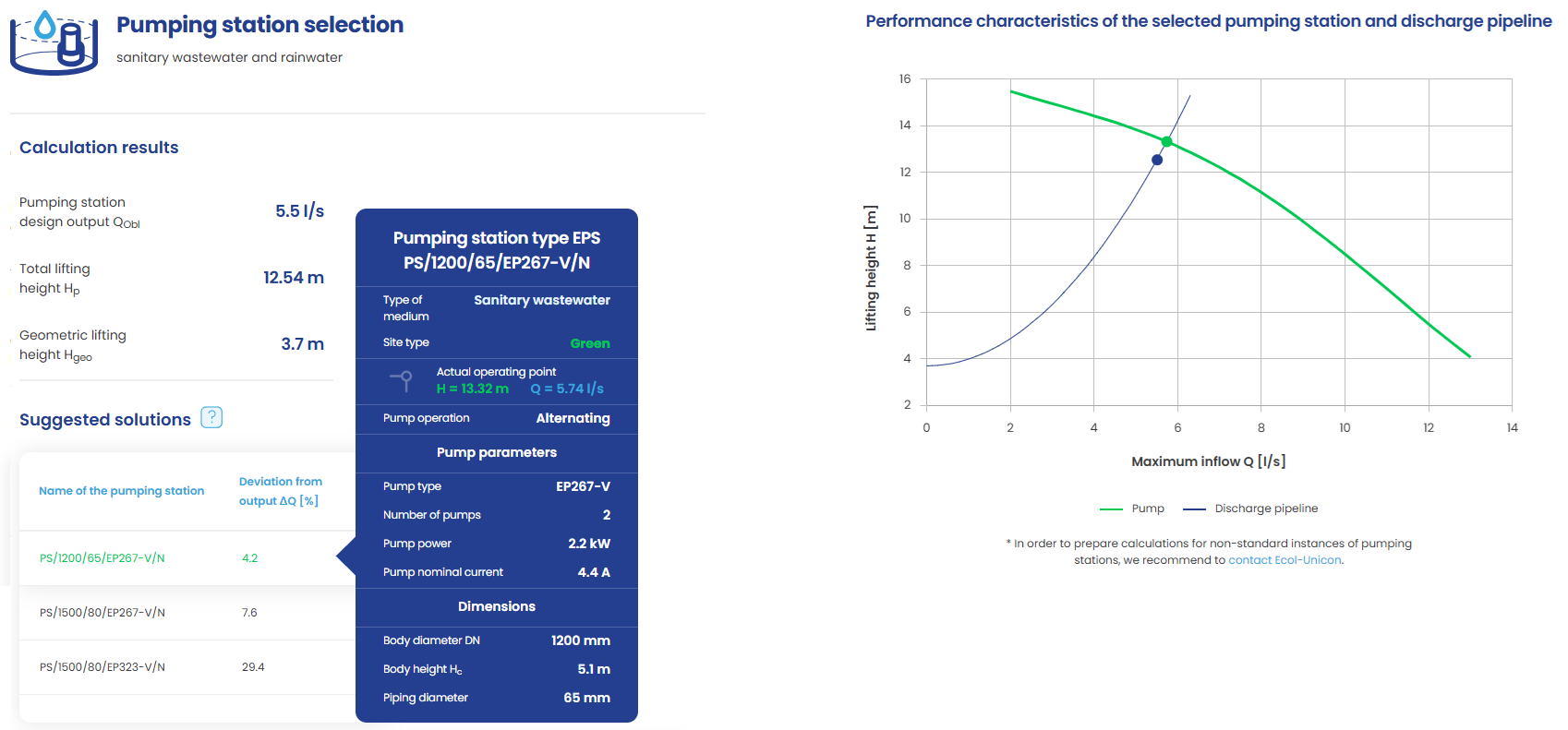

Pumping station selection results
This process ends with the generation of pumping station proposals that best meet the entered parameters, along with a complete specification that can be immediately downloaded or sent to potential contractors.
The report contains information on:
- proposed solutions,
- calculation diagram,
- pump parameters and dimensions,
- operating characteristics of the selected pumping station and discharge pipeline,
- pumping station design capacity,
- total and geometric lifting height.
Obtain characteristics of the pumping station and discharge pipeline.
Calculation results
Once you have made the correct selection, you can download the results as a PDF file and place them in your project.
Additionally, at any time you can directly contact the manufacturer of the solution to ask about the details of the selection, the accuracy of the calculations or request a quote for the solution.
